25.6V40Ah-AGV Lithium Battery Latent Carrier Solution
2022-11-29 11:00:04

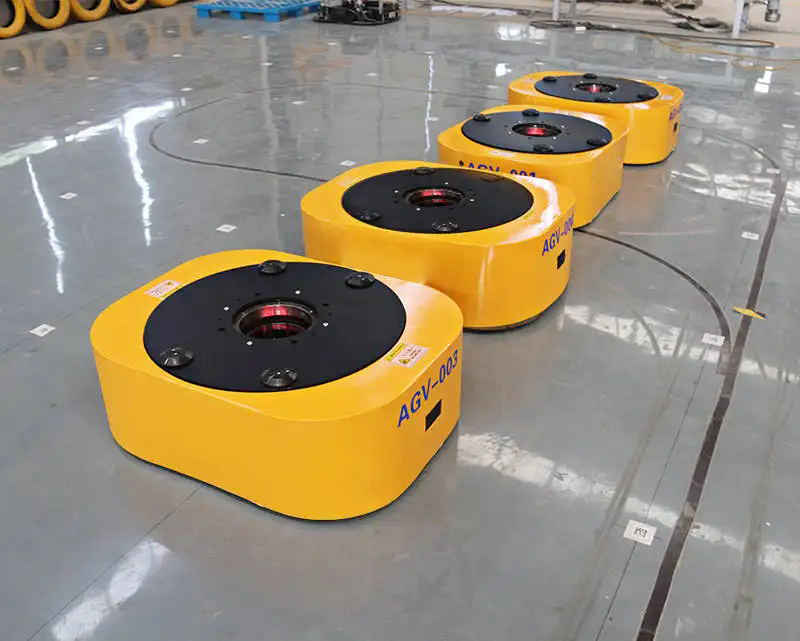

Electrical appliances | AGV unmanned carrier platform, automatic warehousing and logistics vehicle, fully autonomous laser positioning and navigation; If the single operation time exceeds 8 hours, self charging is required; Communicate real-time data with material scheduling systems, traffic control systems, and power detection systems; Timely troubleshooting; Low battery alarm automatic charging or guided charging; Especially suitable for low-temperature cold storage warehousing and logistics use. | |
Application environment | Application occasions | ■Indoor ■Outdoor |
Working temperature/humidity | -40~60℃;40~60%RH | |
Storage temperature/humidity | -30~45℃;50~70%RH | |
Special performance | High and low temperature charging and discharging requirements | -30~45℃;50~70%RH |
Quality guarantee period | 1 year | |
Explosion proof level | Ex (/explosion-proof type)/equipment group/gas group/temperature group | |
Waterproof grade | / | |
Dust level | / | |
Number of drops | 3 times; 300mm vertical drop | |
Electrical characteristics | Operating voltage range | 20.0~28.8V |
Battery capacity | 40Ah | |
Working hours | / | |
Battery size | 360*260*125 mm | |
Normal operating current | 4200mA | |
Maximum starting current | 10A, starting time 20ms | |
Maximum continuous operating current | 200A, when the lifting motor is working | |
Frequency and time of electricity consumption | Continuous use | |
Electricity management | Communication method ■CAN2.0 □I2C ■RS485(MODbus) | |
Finished product certification and environmental requirements | GB31241-2014(CQC)、CE、UL2054、UL60950、un38.3、RCM、KC、PSE、BIS、BMSI、REACH、RoHS、Battery command | |
Product number | HPB-212-11 | |
Battery specifications | 25.6V40Ah | |
Cell model | L148F20C-20000mAh-3.2V | |
Packaging form | □Basic protection category □ PVC+non basic protection category □ Housing+basic protection category □ Housing+non basic protection category | |
Main parameter | Nominal voltage | 25.6V |
Nominal capacity | 40000mAh | |
Battery size | 360*260*125 | |
Battery internal resistance | ≤50mΩ | |
Battery weight | 15kg | |
Charging current | 8000mA(0.2C) | |
Continuous discharge current | 8000mA | |
Protective current | 300A | |
Charging voltage | 29.2V | |
Discharge cutoff voltage | 20.0V | |
Service life | Charging and discharging conditions 0.2C Charging and discharging 0.2C, ≥ 1000 times | |
Charging temperature | -20~45℃ | |
Discharge temperature | -40~60℃ | |
Storage temperature | -30~45℃ | |
Temperature protection | 65±5℃ | |
Main features | 1、Capable of working normally under harsh conditions of -40 degrees Celsius; Capacity retention rate ≥ 70%; | |
2、Charge the battery pack at -20 degrees Celsius; | ||
3、At room temperature, the battery can discharge at a maximum of 40C |
